BDS 1980-1996 Ford Bronco 4WD 4" Suspension Lift Kit

Take your 1980-1996 Ford Bronco 4WD to new heights with the BDS 4" Suspension Lift Kit — a complete bolt-on lift that improves stance, performance, and capability with clearance for up to 33" tires.

Why Choose the BDS 4" Lift Kit?

• Room for 33" Tires – Adds clearance for up to 33" tires (trimming may be required).
• Pro-Ride Coil Springs – Full-length, vehicle-specific dual-rate coils deliver correct lift height and a smooth, predictable ride across terrains.
• Proper Geometry – Heavy-duty steel drop brackets maintain proper suspension geometry, including axle pivot relocation and radius arm drop brackets.
• Steering Correction – Forged pitman arm corrects steering for the new ride height.
• NX2 Nitro Shocks – Nitrogen-charged shocks with vehicle-specific valving for better control front and rear.
• Level Stance – Cast steel rear blocks provide a level front-to-rear stance.
• Bolt-On Install – Designed for easy, bolt-on installation.

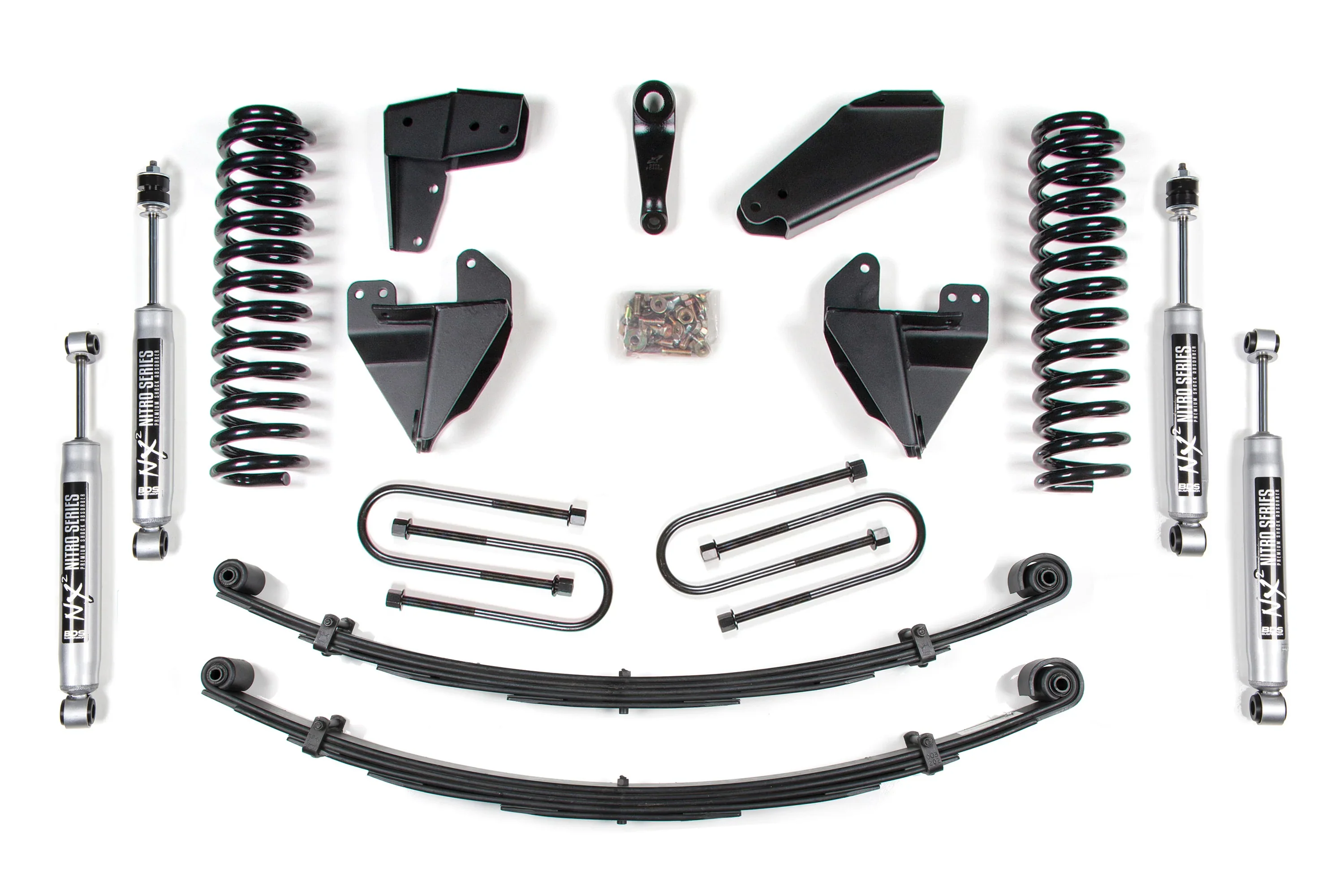

Kit Includes

• Pro-Ride front coil springs
• Axle pivot relocation brackets
• Radius arm drop brackets
• Forged pitman arm
• NX2 Nitro front shocks
• Rear lift block (base kit)
• Longer u-bolts
• NX2 Nitro rear shocks

Installation Highlights

Designed for easy, bolt-on installation. Heavy-duty steel drop brackets set proper suspension geometry front to rear, and cast steel rear blocks deliver a level stance.

Fits These Models

Fits the 1980-1996 Ford Bronco 4WD.

Specifications

• Lift height: 4"
• Tire clearance: up to 33" tires (trimming may be required)
• Recommended tire/wheel: 33 x 12.5 with 15 x 8 wheel and 3.5" backspacing

Key Features at a Glance

• 4" Lift - Clearance for up to 33" tires.
• Pro-Ride Dual-Rate Coils - Smooth ride, correct height.
• HD Steel Drop Brackets - Proper suspension geometry.
• Forged Pitman Arm - Steering correction.
• NX2 Nitro Shocks - Vehicle-specific valving.

Notes

• Base kit uses a high-strength cast iron rear lift block, tapered for correct pinion angle with an offset steel pin and hole to restore axle position, plus longer u-bolts and matching NX2 Nitro shocks.
• Rear lift options: Block Kit (cast iron blocks, tapered for pinion angle, offset pin/hole to restore axle position); Block Kit + Add-A-Leaf (add-a-leaf freshens worn factory leaf springs, cast iron blocks, includes new center pins); or Leaf Springs (eliminates the lift block, reduces axle wrap, multi-leaf progressive design, maintains factory payload ratings).
• Recommended tire/wheel: 33 x 12.5 tires on 15 x 8 wheels with 3.5" backspacing; trimming may be required.

SKU: BDS364H
